Mavic Ksyrium Pro Carbon SL UST Disc Shimano Wheelset

Now you can access the high-performance feel of Mavic latest carbon rim technologies with the Ksyrium Pro Carbon SL UST Disc Centerlock and Yksion Pro tyre. This lightweight carbon disc-brake wheel climbs and corners faster – and delivers UST performance.

Climb faster with less effort: with the Ksyrium Pro Carbon SL UST Disc from Mavic

The Ksyrium Pro Carbon UST SL Disc made full carbon construction and UST Road Tubeless technology. The 21 mm internal width is optimized for 28 mm tires to deliver a smooth, efficient ride on a variety of road surfaces.

The rims feature a 32 mm tall, aero optimized shape that’s made possible by disc brake innovations and the lack of a brake track. And with the Road Tubeless system, you can run lower tire pressure for improved rolling resistance, a smoother ride quality, and a reduced risk of pinch flats. The system is easy to set up and use, and the rims and tires are optimized as a system, with seamless integration and performance.

If your typical rides include a little of everything—tough climbs, technical cornering and descents—the Ksyrium Pro Carbon SL UST Disc is a fast, easy way to supercharge your road bike.

---

Features – Mavic Ksyrium Pro Carbon SL UST Disc Centerlock Shimano Wheelset + Yksion Pro UST 700x28C

• Reduced inertia of the lighter weight rim delivers instant acceleration
• NACA inspired rim shape (32mm deep) minimizes aerodynamic drag
• Mavic UST Road Tubeless improves rolling efficiency
• Light weight and high lateral stiffness helps you maximize your effort when the road rises
• UST Road Tubeless tires with 11 Storm compound maximizes grip and control on the road
• UST reduces the risk of punctures and makes it easy to repair flats
• Optimized spoke count / lacing and hub compatibility for use with disc brake

Product features

• Use: Road

• Model: Ksyrium Pro Carbon SL UST
• Wheel size: 28″
• ETRTO: 622x21C
• Rim type: Clincher
• Tubeless ready: Yes
• Brake type: Disc Centerlock/AFS
• Freehub system: Instant Drive 360
• Freehub body: Shimano 9-/10-/11-speed
• Bearings:

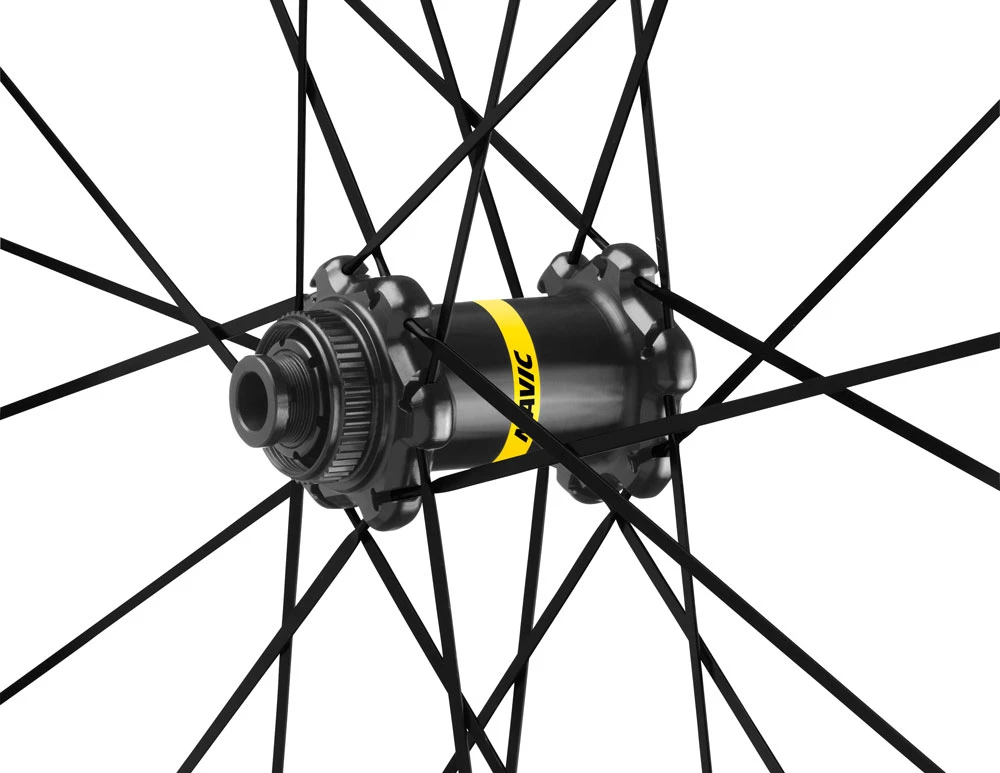

  • Front: Adjustable sealed cartridge bearings (QRM+)

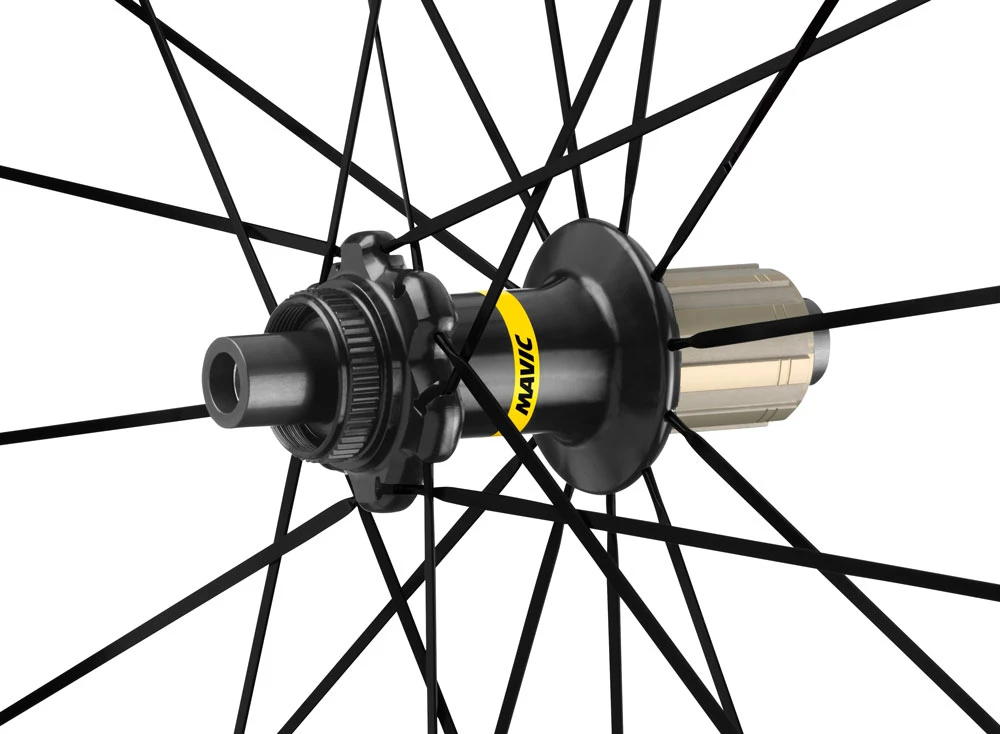

  • Rear: Auto adjust sealed cartridge bearings (QRM Auto)
• Rim inner width: 21mm
• Rim height: 32mm
• Hub axle system:
  • Front: 12 x 100mm TA
  • Rear: 12 x 142mm TA
• Spoke type: Straight pull, bladed, double butted front and rear non drive side
• Spokes:
  • Front: 24 (2-cross)
  • Rear: 24 (Isopulse)
• Recommended tyre sizes: 25mm to 32mm
• Valve hole: Presta / SV Ø 6.5mm
• Recommended system weight max: 120kg (Rider + Bike + Equipment)

Material

• Rim: 3K-Carbon
• Hub: Aluminum
• Freehub: Aluminium
• Spoke: Steel
• Nipples: Aluminium

Color

• black

Weight without tyre (manufacturer information)

• Front: approx. 695g
• Rear: approx. 810g
• Wheelset: approx. 1505g

Tyre

• Model: Yksion Pro UST
• Tread: 11 Storm single compound
• UST Tubeless Ready: Yes
• Dimension: 28-622 (700x28c)
• Breaker: Polyamide, from bead to bead
• Casing: 127 TPI

---

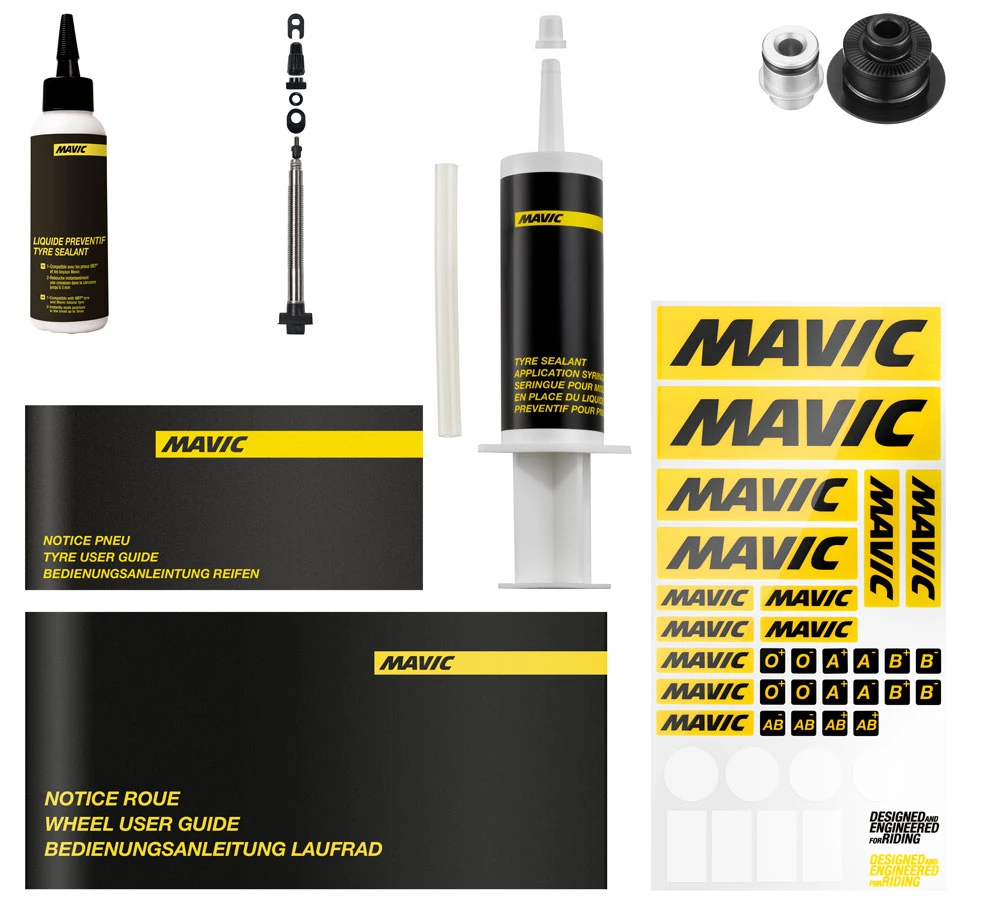

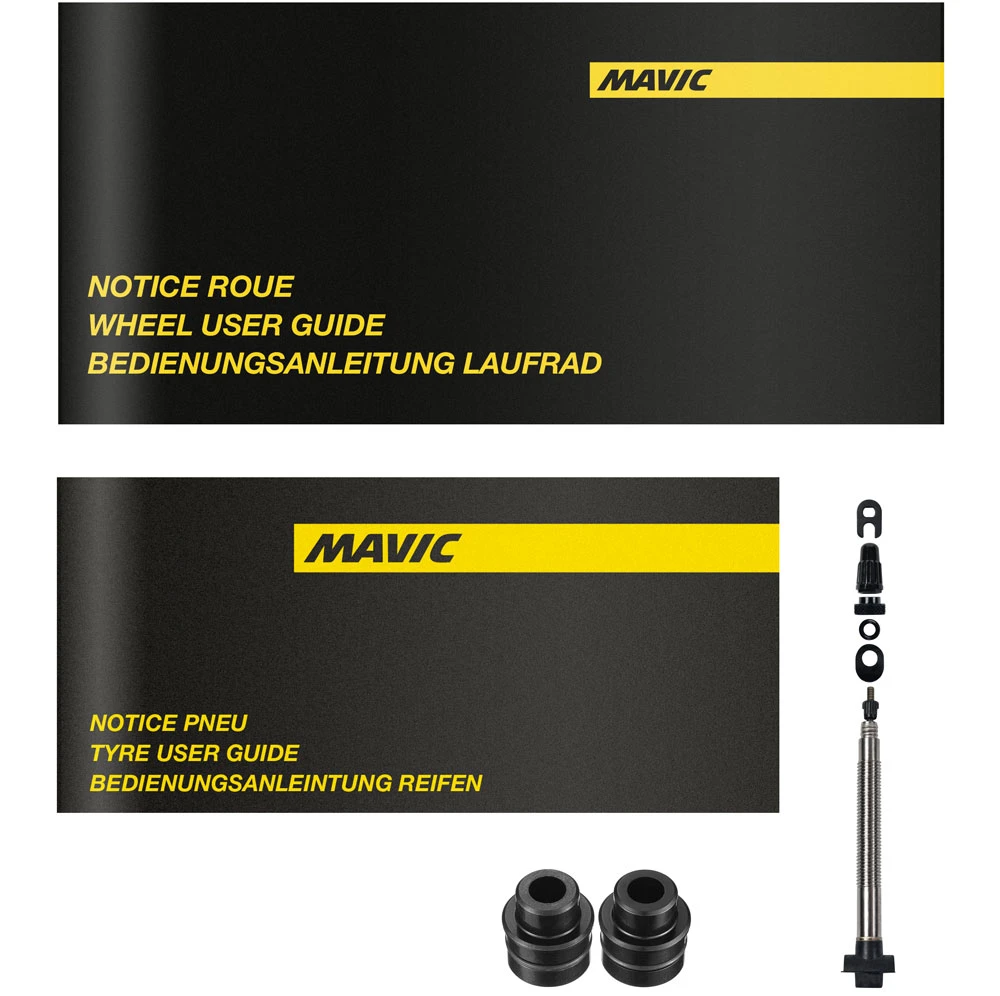

Scope of delivery

• 1 Mavic Ksyrium Pro Carbon SL UST Disc Wheelset
• 2 Mavic Yksion Pro UST 28-622 Tyres
• 1 Tyre sealant syringe
• 1 Mavic tyre sealant
• 2 UST valves and accessories
• 1 Rear QR adapters for Instant Drive 360
• 1 Front QR adapters
• 1 User guide

---

Technologies

UST Tubeless Ready
Traction, control and lightweight. The UST concept improves traction, control and comfort while reducing inertia and flats.The « tubeless ready » construction results in a lighter tyre for improved performance.

Instant Drive 360
The new Instant Drive 360 freewheel system is super light and fast to engage with only 9°. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

Isopulse
Optimum energy transfer. The spokes are laced radially on the drive side and crossed 2 on the non drive side to maximise drive side dish, thus providing a better spoke tension balance between left and right flanges.

QRM+ (Qualité de Roulements Mavic+)
Our most demanding level. Those cartridge bearings are of course double sealed with C3 internal clearance, and toped with a micro-adjustability system.

---
